Used for 4"4.5"5"7" and 9" angle grinder, 100/115/125/150/180&230mm diameter products are suit to Europe, South-America, Middle-east and etc. Reach out to us today to request a quote for our inox cut off wheel series.
Used for 4"4.5"5"7" and 9" angle grinder, 100/115/125/150/180&230mm diameter products are suit to Europe, South-America, Middle-east and etc.
1.0/1.2/1.6/2.0/2.5/3.0mm thickness widely used for various cutting application. Increase side strength to Ensure safer application.

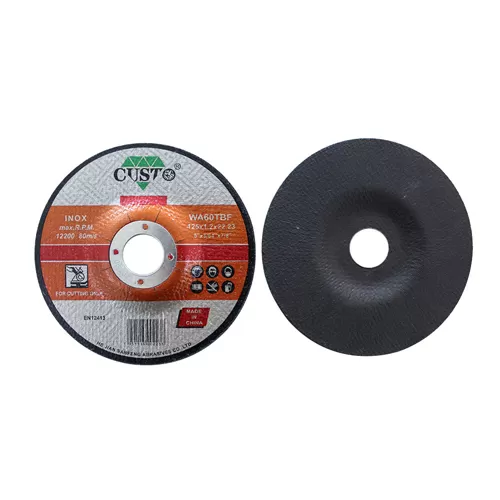

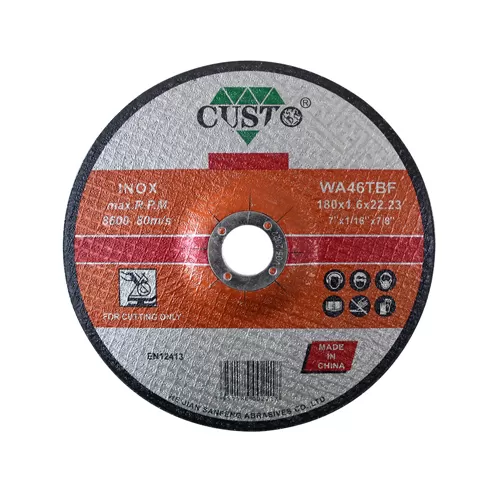

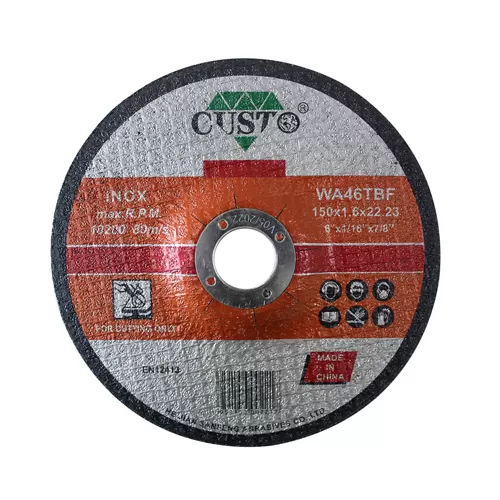

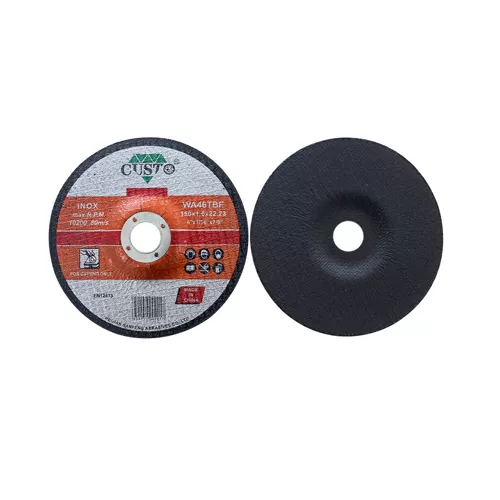

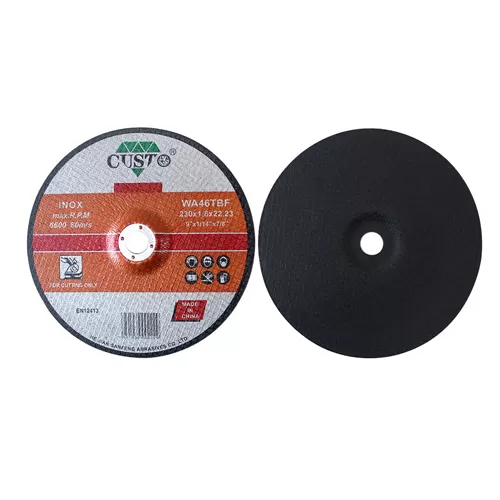

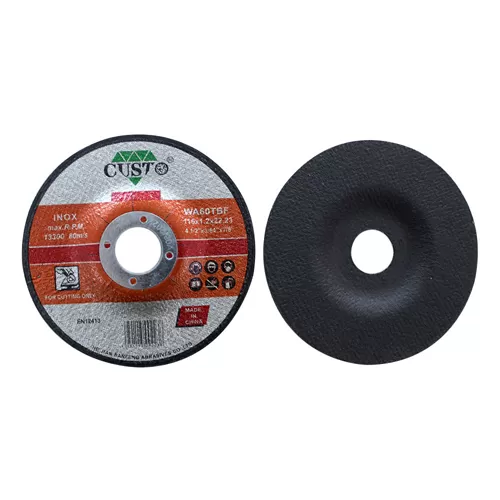

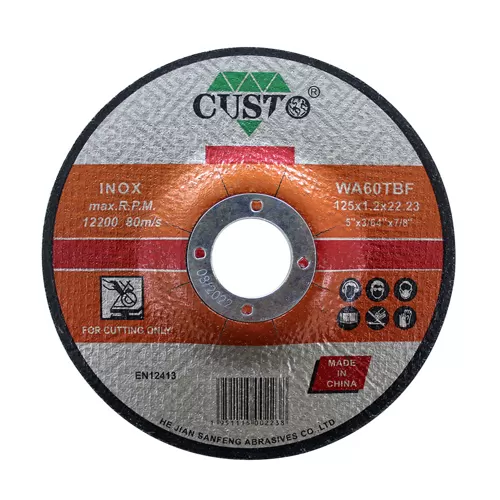

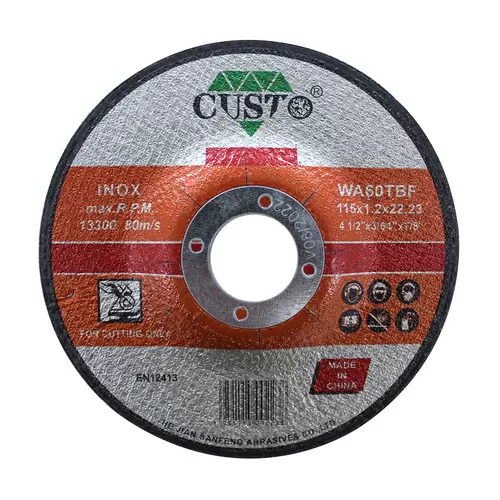

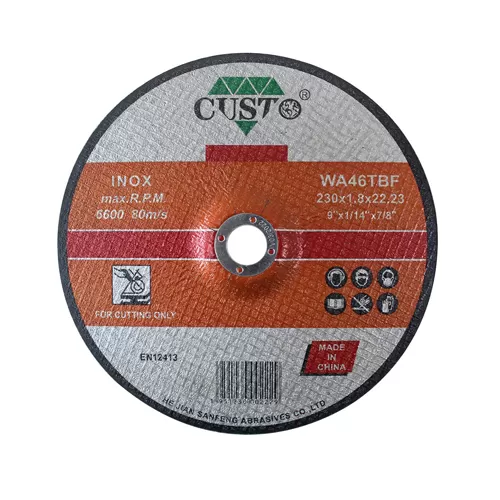

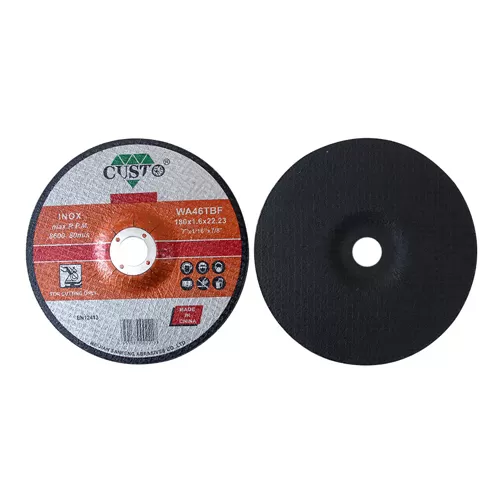

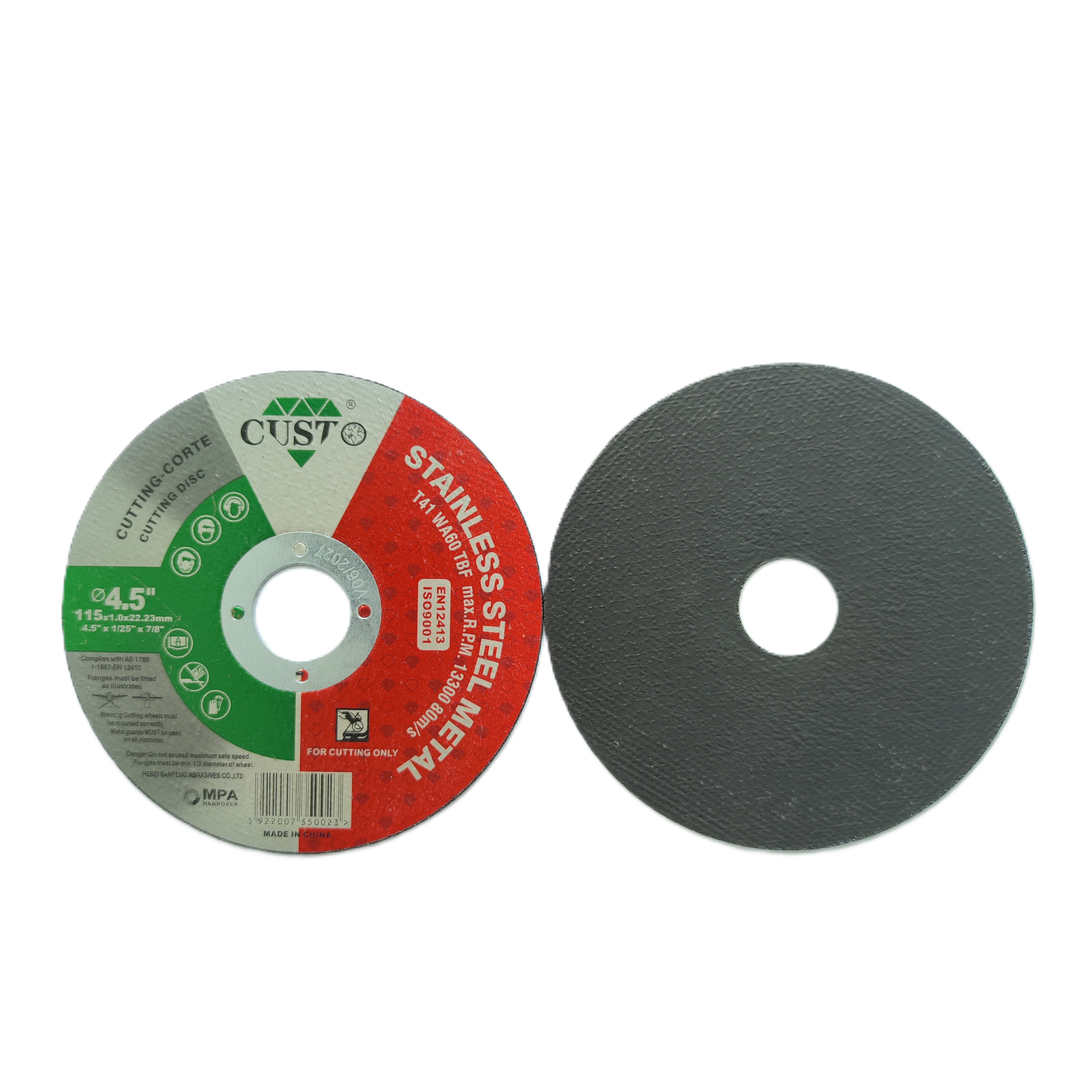

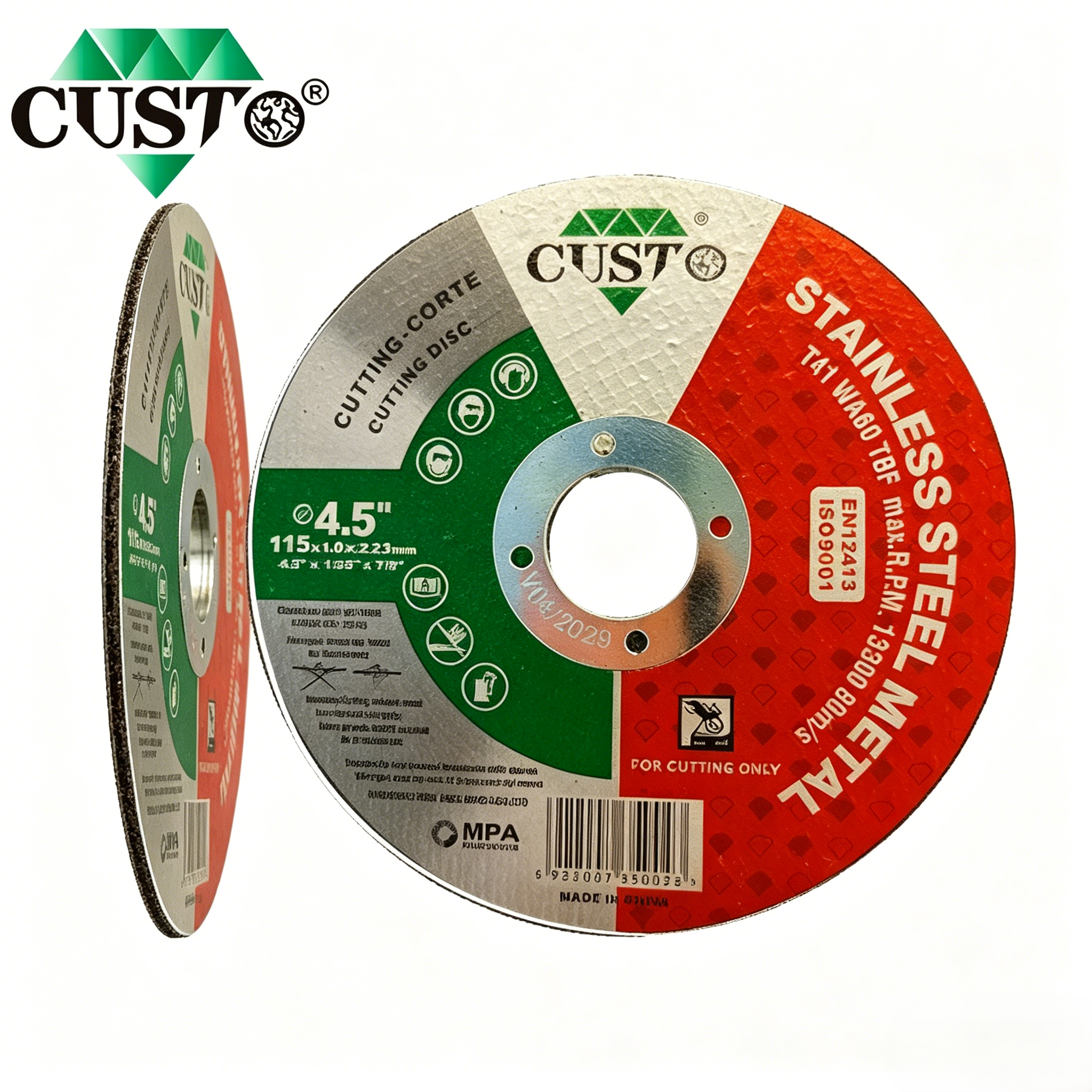

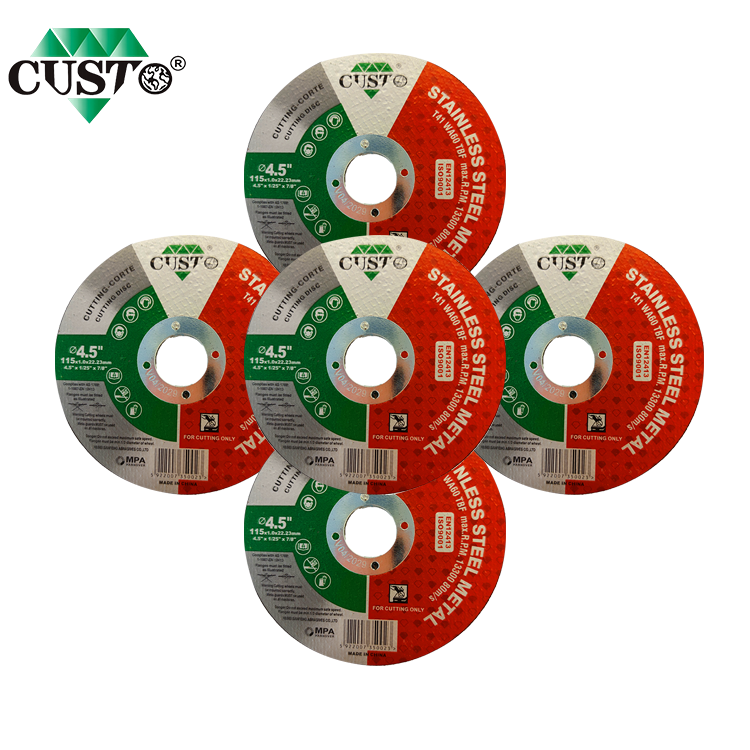

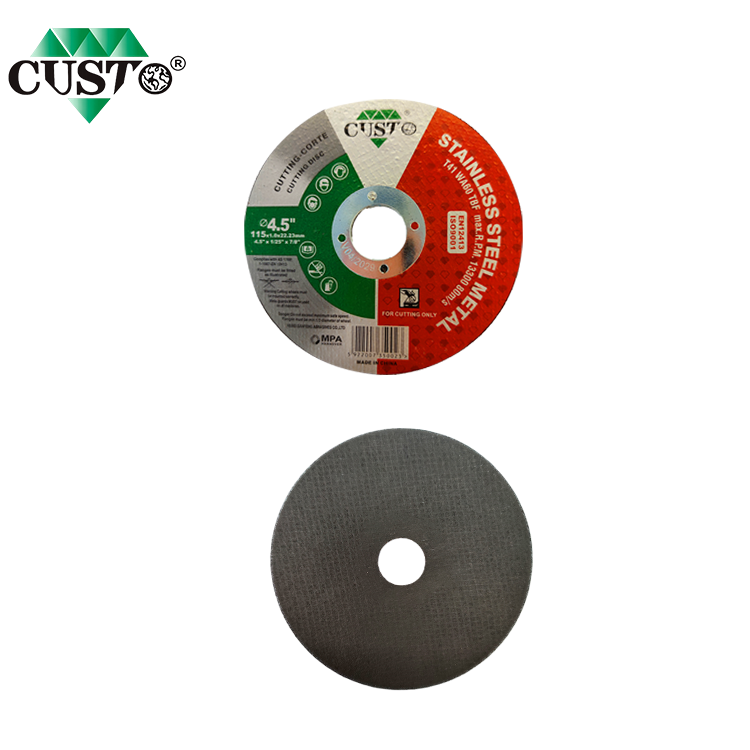

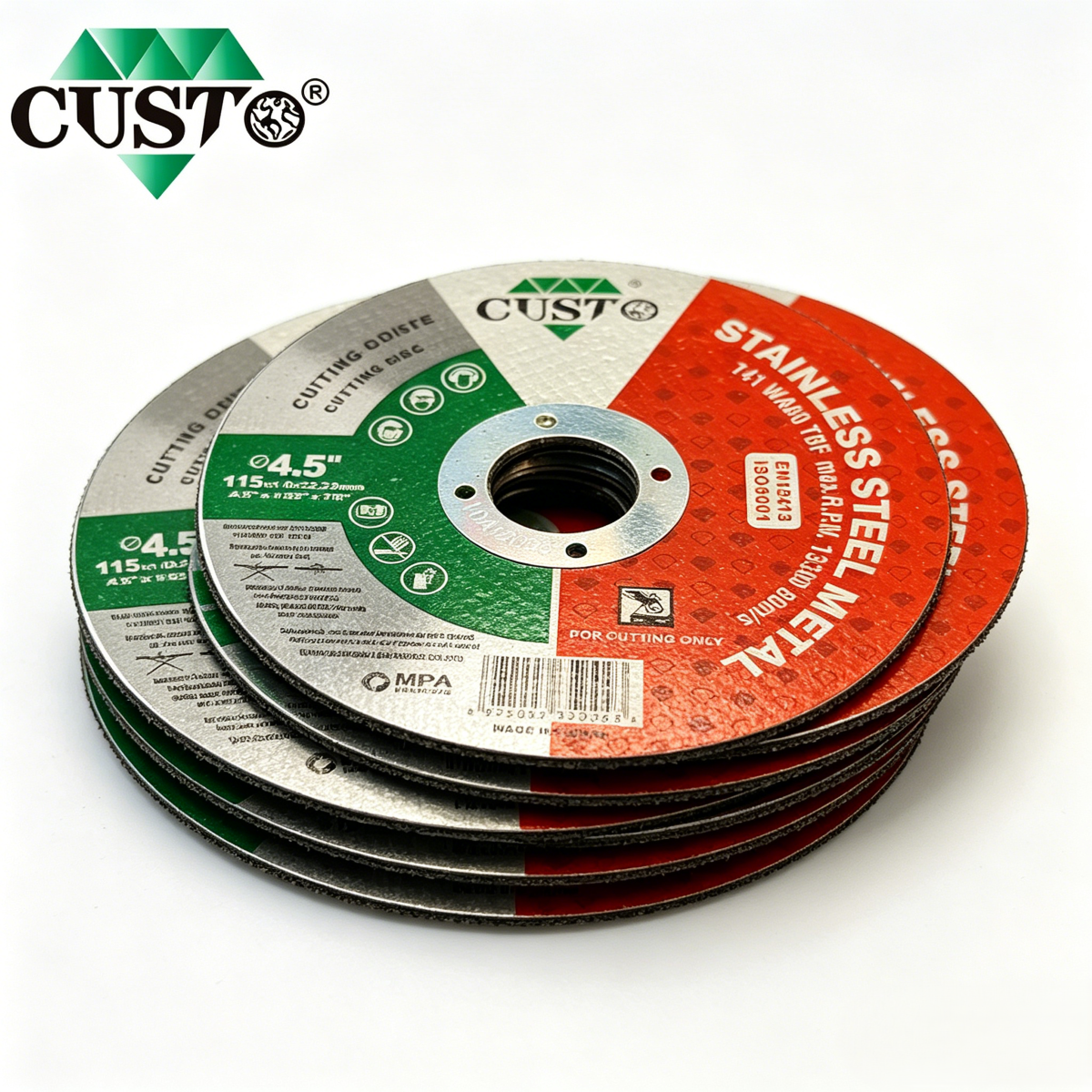

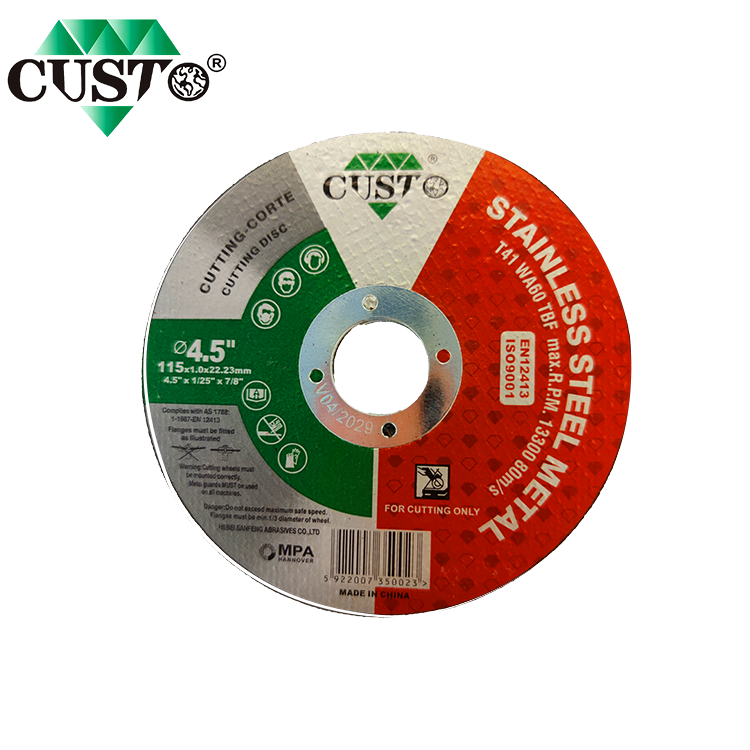

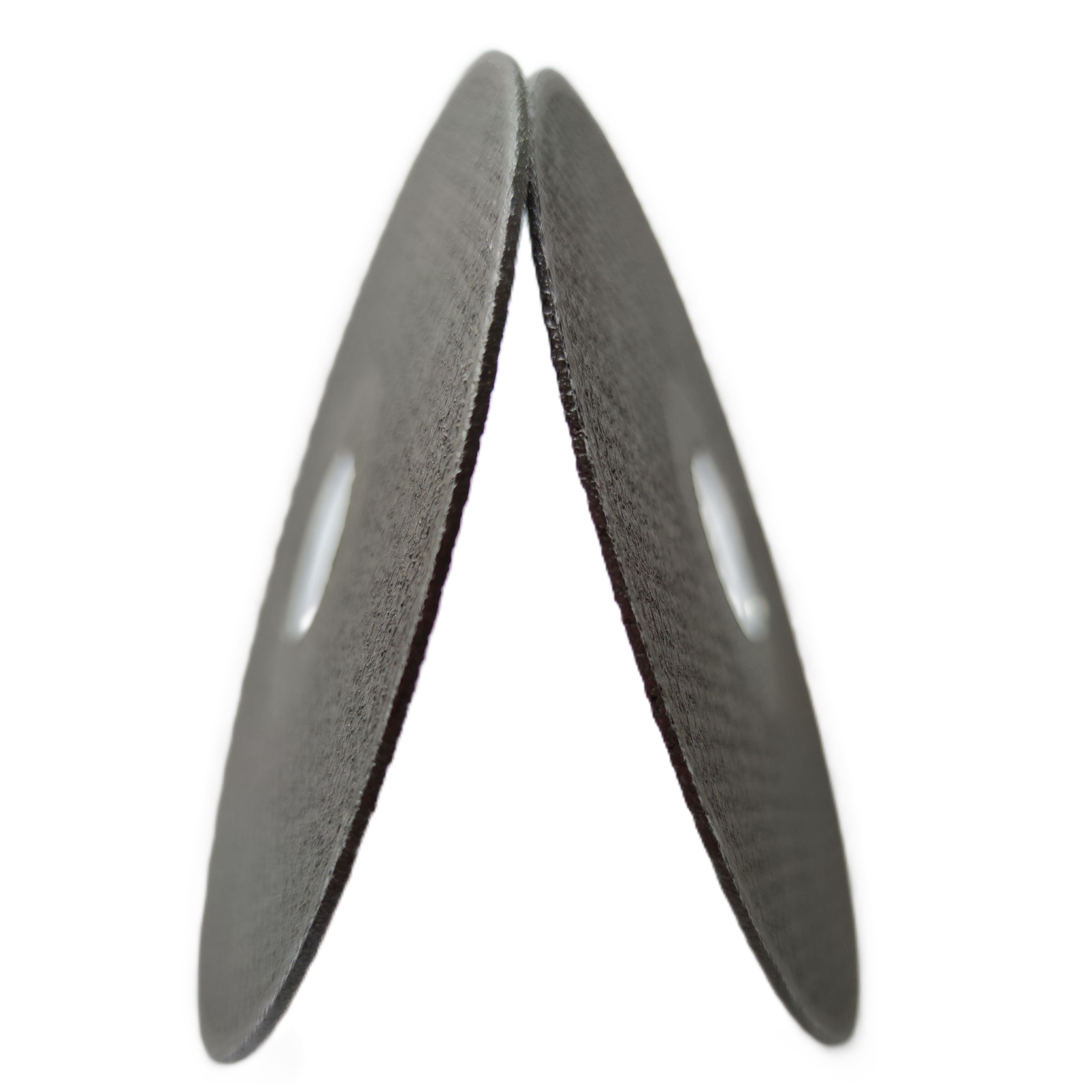

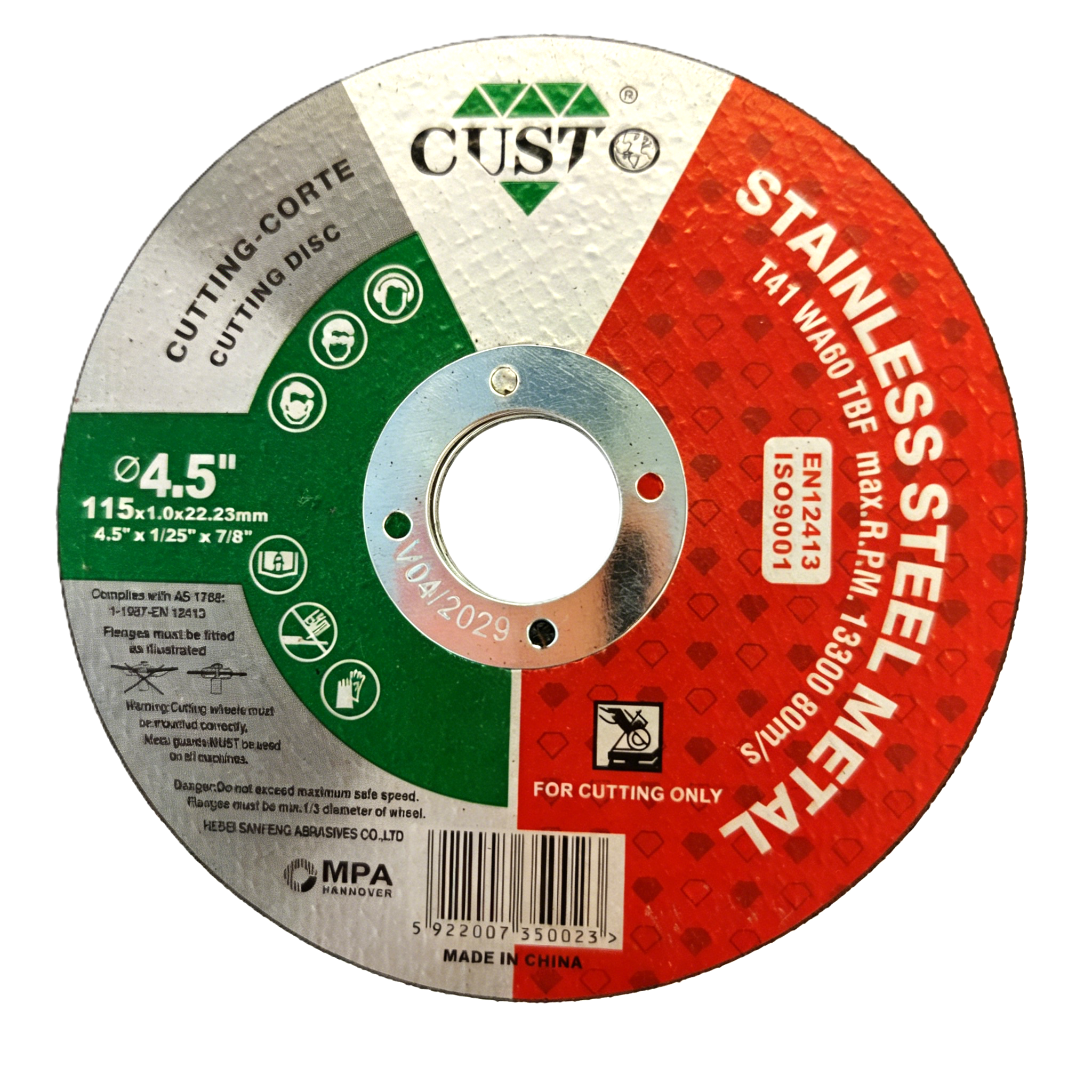

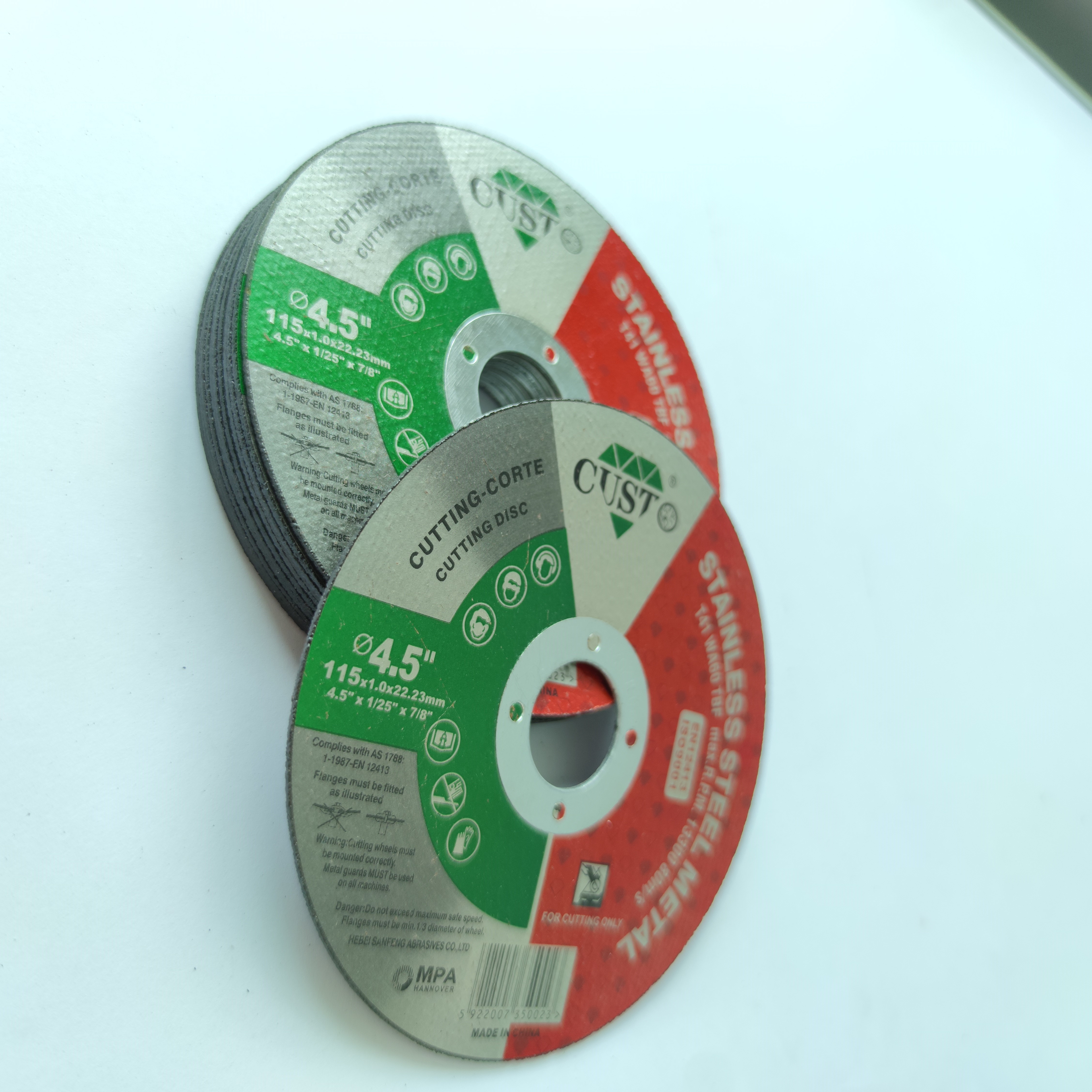

The Depressed Center Cut off Wheel has perfect abrasive performance and extra durability on application of steel, obvious advantage among the competition of various brands.
Superior Durability
Ultrahigh cutting speed
High break-resistance
Super high toughness
Low heat generation
Comfortable cutting experience
Economic
No block
Material of Thin-walled tube
Various section bars
Various Plates
Rebar
Round steel
Trapezoidal profile
Threaded rod
Cable trough
Corrugated plate
Steel plate with plastic coating
Painted steel plate
Hardox (a kind of wear-resistant steel plate)
Angle iron
Angle steel
Tool steels
Construction steels
Spring steels
Stainless steels
Cast steels
High alloy steel
High strength structural steel
Mild steels
Stainless steel containing nickel
Item number | Dimension | Dimension | Speed(RPM) | Speed(m/s) | QTY/BO× | QTY/CTN |
42WA1150822N2B | 115×0.8×22.2 | 41/2×1/32×7/8 | 13300 | 80 | 100 | 400 |
42WA1151022N2B | 115×1.0×22.2 | 41/2×1/25×7/8 | 13300 | 80 | 100 | 400 |
42WA1151222N2B | 115×1.2×22.2 | 41/2×3/64×7/8 | 13300 | 80 | 100 | 400 |
42WA1151622N2B | 115×1.6×22.2 | 4 1/2×1/16×7/8 | 13300 | 80 | 100 | 400 |
42WA1152022N2B | 115×2.0×22.2 | 4 1/2×5/64×7/8 | 13300 | 80 | 100 | 400 |
42WA1152522N2B | 115×2.5×22.2 | 4 1/2×3/32×7/8 | 13300 | 80 | 25 | 400 |
42WA1153022N2B | 115×3.0×22.2 | 4 1/2×1/8×7/8 | 13300 | 80 | 25 | 200 |
42WA1250822N2B | 125×0.8×22.2 | 41/2×1/32×7/8 | 12250 | 80 | 100 | 400 |
42WA1251022N2B | 125×1.0×22.2 | 5×1/25×7/8 | 12250 | 80 | 100 | 400 |
42WA1251222N2B | 125×1.2×22.2 | 5×3/64×7/8 | 12250 | 80 | 100 | 400 |
42WA1251622N2B | 125×1.6×22.2 | 5×1/16×7/8 | 12250 | 80 | 100 | 400 |
42WA1252022N2B | 125×2.0×22.2 | 5×1/64×7/8 | 12200 | 80 | 100 | 400 |
42WA1252522N2B | 125×2.5×22.2 | 5×3/32×7/8 | 12200 | 80 | 25 | 400 |
42WA1253022N2B | 125×3.0×22.2 | 5×1/8×7/8 | 12200 | 80 | 25 | 200 |
42WA1501622N2B | 150×1.6×22.2 | 6×1/16×7/8 | 10200 | 80 | 50 | 200 |
42WA1502022N2B | 150×2.0×22.2 | 6×5/64×7/8 | 10200 | 80 | 50 | 400 |
42WA1502522N2B | 150×2.5×22.2 | 6×3/32×7/8 | 10200 | 80 | 25 | 200 |
42WA1503022N2B | 150×3.0×22.2 | 6×1/8×7/8 | 10200 | 80 | 25 | 200 |
42WA1801622N2B | 180×1.6×22.2 | 7×1/16×7/8 | 8600 | 80 | 50 | 200 |
42WA1802022N2B | 180×2.0×22.2 | 7×1/12×7/8 | 8600 | 80 | 50 | 200 |
42WA1802522N2B | 180×2.5×22.2 | 7×3/32×7/8 | 8600 | 80 | 25 | 100 |
42WA1803022N2B | 180×3.0×22.2 | 7×1/8×7/8 | 8600 | 80 | 25 | 100 |
42WA2301622N2B | 230×1.6×22.2 | 9×1/16×7/8 | 6600 | 80 | 50 | 100 |
42WA2301822N2B | 230×1.8×22.2 | 9×1/14×7/8 | 6600 | 80 | 50 | 100 |
42WA2302022N2B | 230×2.0×22.2 | 9×5/64×7/8 | 6600 | 80 | 50 | 100 |
42WA2302522N2B | 230×2.5×22.2 | 9×3/32×7/8 | 6600 | 80 | 25 | 50 |
42WA2303022N2B | 230×3.0×22.2 | 9×1/8×7/8 | 6600 | 80 | 25 | 50 |
