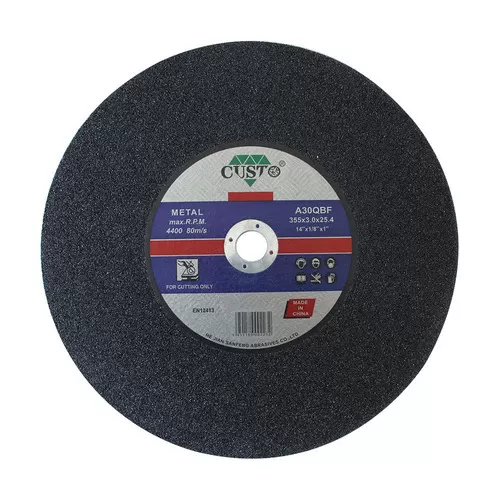

Used for fixed cutting machine, 400/355/305mm diameter, 2.5/3.0/3.5/4.0mm thickness, offer users more durability, suitable for most high requirement customers.
Used for fixed cutting machine, 400/355/305mm diameter, 2.5/3.0/3.5/4.0mm thickness, offer users more durability, suitable for most high requirement customers.
Maximize the friction and sharpness, reduce the burrs after cutting.
Various cutting applications, increase side strength to ensure safer application.
Has perfect abrasive performance and extra durability on application of steel.
Superior Durability
Ultrahigh cutting speed
High break-resistance
Low heat generation
Comfortable cutting experience
Economic
No block
Material of Thin-walled tube
Various section bars
Material of Solid Pipe
Various Plates
Big -pipe
Rebar
Trapezoidal profile
Threaded rod
Cable trough
Steel plate with plastic coating
Angle iron
Angle steel
Tool steels
Construction steels
Spring steels
Cast steels
High strength structural steel
Mild steels
Usage Recommendation
The products with Q hardness are used for cutting most solid steel material, has excellent abrasive performance and extra durability.
4/3.5/3.2/3mm thickness disc is of long life and high profile stability.
Item Number | Dimension | Dimension | Speed (RPM) | Speed(m/s) | QTY/CTN |
41A3003020N2B | 300×3.0×19.05 | 12×3/32×3/4 | 5100 | 80 | 25 |
41A3003022N2B | 300×3.0×22.2 | 12×1/8×7/8 | 5100 | 80 | 25 |
41A3003025N2B | 300×3.0×25.4 | 12×1/8×1 | 5100 | 80 | 25 |
41A3003522N2B | 300×3.5×22.2 | 12×5/32×1 | 5100 | 80 | 25 |
41A3502525N2B | 350×2.5×25.4 | 12×3/32×1 | 4400 | 80 | 30 |
41A3503025N2B | 350×3.0×25.4 | 14×1/8×1 | 4400 | 80 | 25 |
41A3503225N2B | 350×3.2×25.4 | 14×1/8×1 | 4400 | 80 | 25 |
41A3503525N2B | 350×3.5×25.4 | 14×9/64×1 | 4400 | 80 | 25 |
41A3503520N2B | 350×3.5×20 | 14×9/64×3/4 | 4400 | 80 | 25 |
41A3504025N2B | 350×4.0×25.4 | 14×5/32×1 | 4400 | 80 | 25 |
41A3504020N2B | 350×4.0×20 | 14×5/32×3/4 | 4400 | 80 | 25 |
41A4003225N2B | 400×3.2×25.4 | 16×1/8×1 | 3800 | 80 | 25 |
41A4003232N2B | 400×3.2×32 | 16×1/8×5/4 | 3800 | 80 | 25 |
41A4003525N2B | 400×3.5×25.4 | 16×9/64×1 | 3800 | 80 | 25 |
41A4003532N2B | 400×3.5×32 | 16×9/64×5/4 | 3800 | 80 | 25 |
41A4004025N2B | 400×4.0×25.4 | 16×5/32×1 | 3800 | 80 | 25 |
41A4004032N2B | 400×4.0×32 | 16×5/32×5/4 | 3800 | 80 | 25 |
